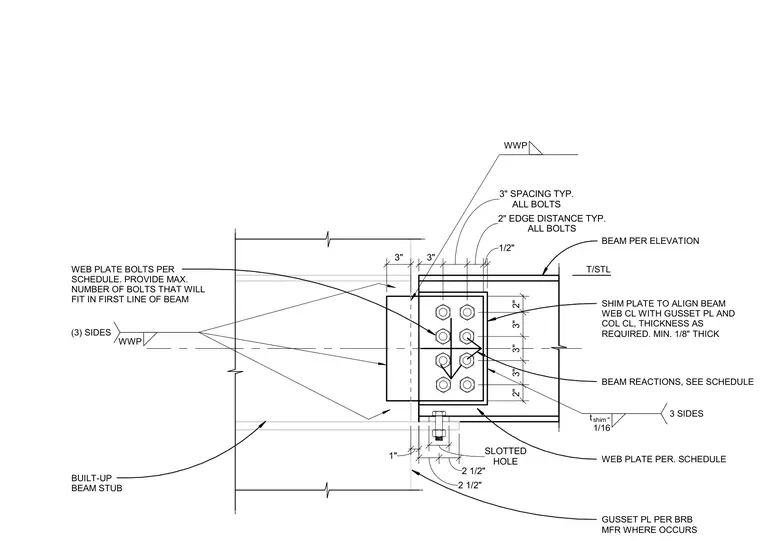

A buckling-restrained brace top joint connection aligns with a strong axis. A built-up beam stub connects to a gusset plate provided per the buckling-restrained brace manufacturer where it occurs. A web plate connects the beam to the gusset plate using structural bolts with a typical three-inch spacing and two-inch edge distance. A shim plate of one-eighth inch minimum thickness is included as required to align the beam web centerline with the gusset plate and column centerline. Slotted holes are provided in the connection with a one-inch dimension, and welded wire projections or fillet welds are specified on three sides where indicated.
T/STL SLOTTED HOLE 1" 2 1/2" 2 1/2" 2" 3" 3" 3" 2" 3" ALL BOLTS 3" SPACING TYP. ALL BOLTS 2" EDGE DISTANCE TYP. 1/2" 3" SHIM PLATE TO ALIGN BEAM WEB CL WITH GUSSET PL AND COL CL, THICKNESS AS REQUIRED. MIN. 1/8" THICK BEAM REACTIONS, SEE SCHEDULE BEAM PER ELEVATION WEB PLATE BOLTS PER SCHEDULE. PROVIDE MAX. NUMBER OF BOLTS THAT WILL FIT IN FIRST LINE OF BEAM WWP t - 1/16 3 SIDES shim WEB PLATE PER. SCHEDULE GUSSET PL PER BRB MFR WHERE OCCURS BUILT-UP BEAM STUB WWP (3) SIDES
