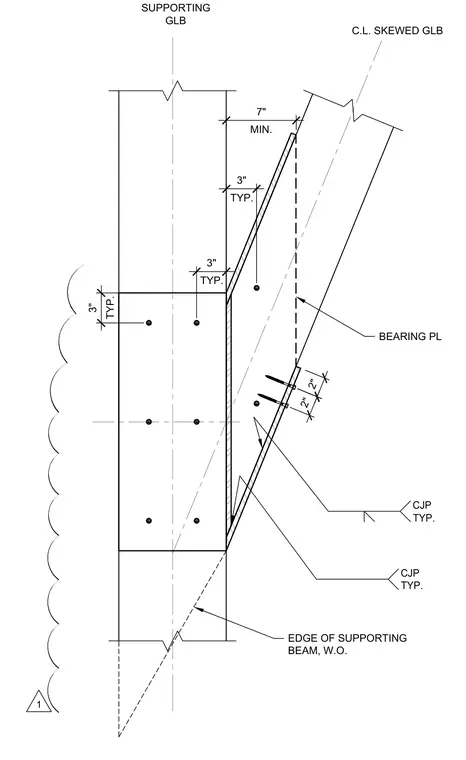

A skewed glulam beam frames into a supporting glulam beam utilizing a bearing plate welded with complete joint penetration welds typically throughout. The detail specifies a minimum seven-inch dimension from the support centerline to the end of the skewed member, with three-inch typical spacings and two-inch edge clearances.
CJP TYP. C.L. SKEWED GLB 2" 2" 7" MIN. 3" TYP. BEARING PL CJP TYP. 3" TYP. 3" TYP. EDGE OF SUPPORTING BEAM, W.O. 1 C.L. SUPPORTING GLB
