Structural · S-VTGCJ

Cantilevered Beam Connection at Column

Materials

Concrete Metal (misc.)

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection

About this detail

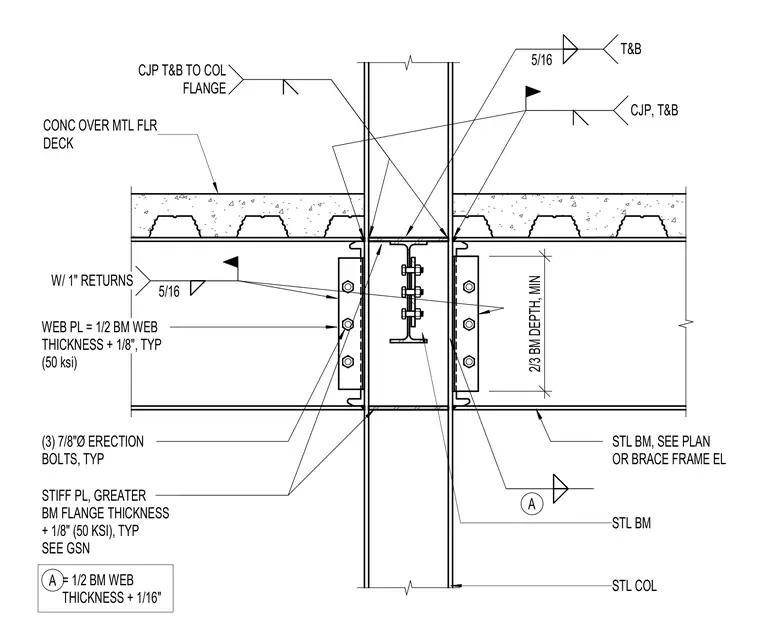

Steel beams connect to a steel column supporting a concrete slab over metal floor deck. The beam web connects using a web plate sized at one-half the beam web thickness plus one-eighth inch, secured with three seven-eighths-inch diameter erection bolts on each side. The beam flanges feature complete joint penetration welds top and bottom to the column flange, supplemented by stiffener plates sized to the greater beam flange thickness plus one-eighth inch at fifty ksi typical. Five-sixteenth-inch fillet welds with one-inch returns secure the web plates. A minimum dimension A equal to one-half the beam web thickness plus one-sixteenth inch is maintained at the web connection.
