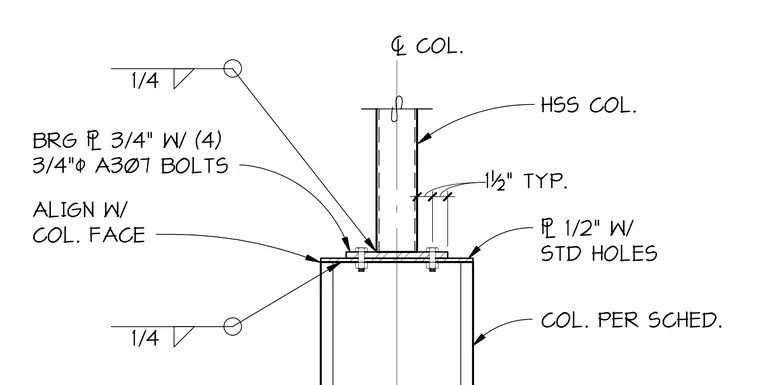

An HSS column connects to a supporting member per schedule using a three-quarter-inch bearing plate secured with four three-quarter-inch diameter A307 bolts. A one-half-inch plate with standard holes aligns with the column face, maintaining a typical one-and-a-half-inch setback. One-quarter-inch fillet welds are specified at the connections.
. COL. 1½" TYP. 1½" ALIGN W/ COL. FACE BRG $ 3/4" W/ (4) 3/4"0 A307 BOLTS 1/4 HSS COL. COL. PER SCHED. $ 1/2" W/ STD HOLES 1/4
