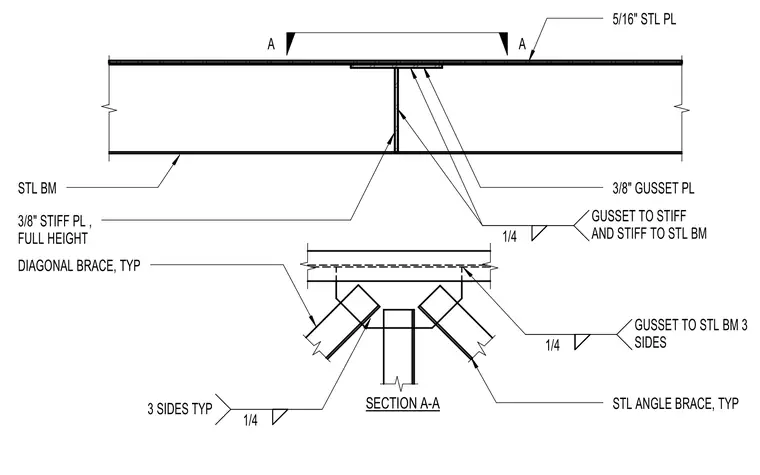

A diagonal steel angle brace connects to a structural steel beam via a three-eighths-inch thick gusset plate and a three-eighths-inch full-height stiffener plate welded to the web of the steel beam. A five-sixteenths-inch steel plate is attached along the top flange. The gusset plate is secured to the stiffener and the stiffener to the steel beam with one-quarter-inch fillet welds on three sides. The gusset plate is likewise welded directly to the steel beam with one-quarter-inch fillet welds on three sides.
A A 3/8" STIFF PL , FULL HEIGHT STL BM DIAGONAL BRACE, TYP SECTION A-A STL ANGLE BRACE, TYP 3/8" GUSSET PL 5/16" STL PL 1/4 GUSSET TO STIFF AND STIFF TO STL BM 1/4 3 SIDES TYP 1/4 GUSSET TO STL BM 3 SIDES
