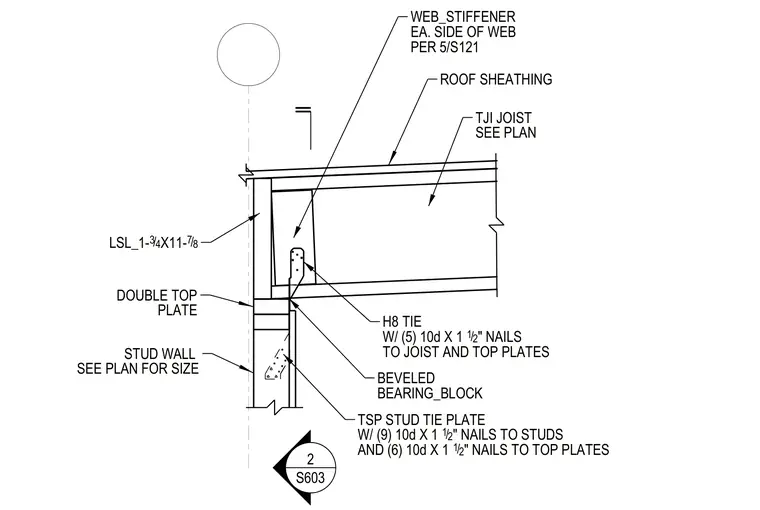

Roof sheathing bears over a wood I-joist supported by a double top plate of a stud wall. Web stiffeners are attached to each side of the joist web. An LSL rim board measuring 1-3/4 inches by 11-7/8 inches closes the joist space. An H8 tie fastens the joist to the top plates using five 10d by 1-1/2-inch nails, set above a beveled bearing block. A TSP stud tie plate connects the wall studs to the top plates using nine 10d by 1-1/2-inch nails to the studs and six 10d by 1-1/2-inch nails to the top plates.
ROOF SHEATHING WEB_STIFFENER EA. SIDE OF WEB PER 5/S121 TJI JOIST SEE PLAN LSL_1- 3 4 / X11- 7 8 / SEE PLAN FOR SIZE STUD WALL PLATE DOUBLE TOP BEVELED BEARING_BLOCK H8 TIE W/ (5) 10d X 1 1 2 / " NAILS TO JOIST AND TOP PLATES 2 S603 TSP STUD TIE PLATE W/ (9) 10d X 1 1 2 / " NAILS TO STUDS AND (6) 10d X 1 1 2 / " NAILS TO TOP PLATES
