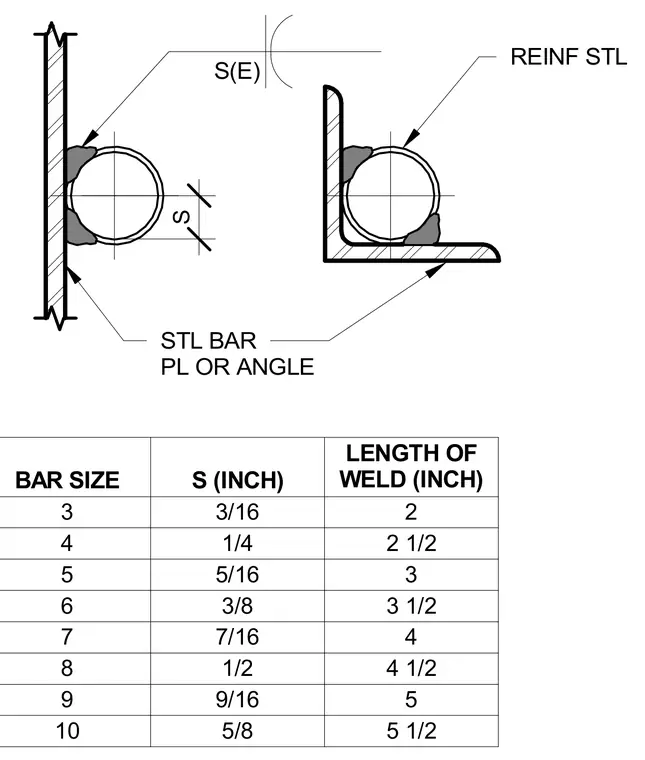

This structural detail provides a schedule and diagrams for welding reinforcing steel bars to steel plates or angles. The diagrams illustrate fillet welds securing reinforcing steel bars against a vertical steel plate and a steel angle. A companion table correlates bar sizes from number 3 through 10 with the corresponding dimension S in inches, ranging from 3/16 inch to 5/8 inch. The table also specifies the required length of weld in inches for each bar size, scaling from 2 inches up to 5 1/2 inches.
S S(E) STL BAR PL OR ANGLE REINF STL BAR SIZE S (INCH) LENGTH OF WELD (INCH) 3 3/16 2 4 1/4 2 1/2 5 5/16 3 6 3/8 3 1/2 7 7/16 4 8 1/2 4 1/2 9 9/16 5 10 5/8 5 1/2
