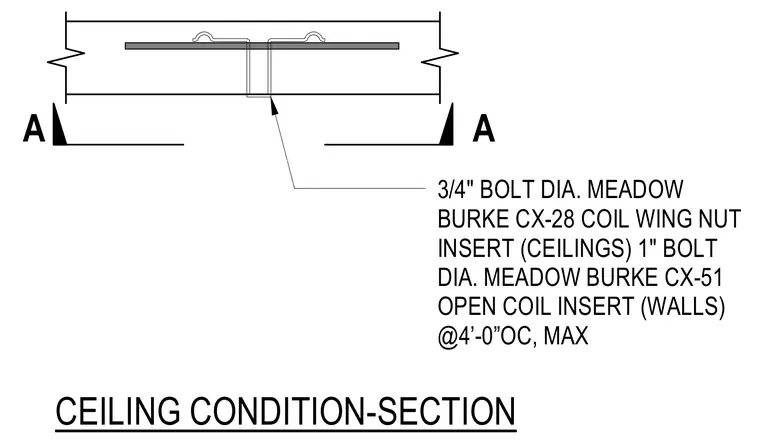

A three-quarter-inch bolt diameter Meadow Burke CX-28 coil wing nut insert is embedded within the concrete ceiling assembly. The insert secures suspension hardware with threaded fasteners spaced at a maximum of four feet on center.
3/4" BOLT DIA. MEADOW BURKE CX-28 COIL WING NUT INSERT (CEILINGS) 1" BOLT DIA. MEADOW BURKE CX-51 OPEN COIL INSERT (WALLS) @4’-0”OC, MAX A A CEILING CONDITION-SECTION
