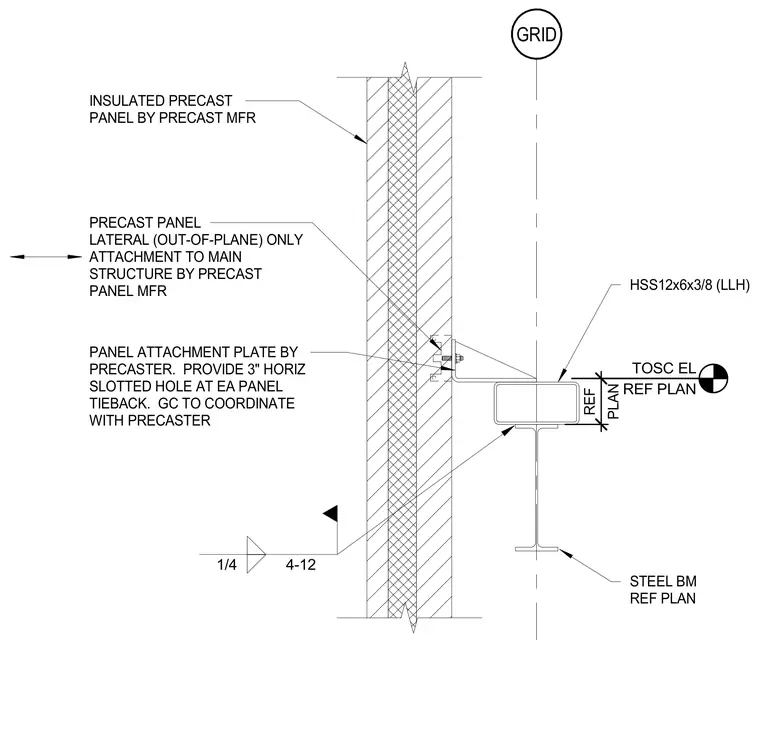

An insulated precast concrete wall panel connects laterally for out-of-plane forces to an HSS12x6x3/8 hollow structural section steel beam. The panel attachment plate is provided by the preeaster and features a three-inch horizontal slotted hole at each panel tieback. The tieback assembly provides lateral support only, with the general contractor coordinating installation with the preeaster.
GRID TOSC EL REF PLAN STEEL BM REF PLAN INSULATED PRECAST PANEL BY PRECAST MFR PLAN REF 1/4 4-12 PRECAST PANEL LATERAL (OUT-OF-PLANE) ONLY ATTACHMENT TO MAIN STRUCTURE BY PRECAST PANEL MFR PANEL ATTACHMENT PLATE BY PRECASTER. PROVIDE 3" HORIZ SLOTTED HOLE AT EA PANEL TIEBACK. GC TO COORDINATE WITH PRECASTER HSS12x6x3/8 (LLH)
