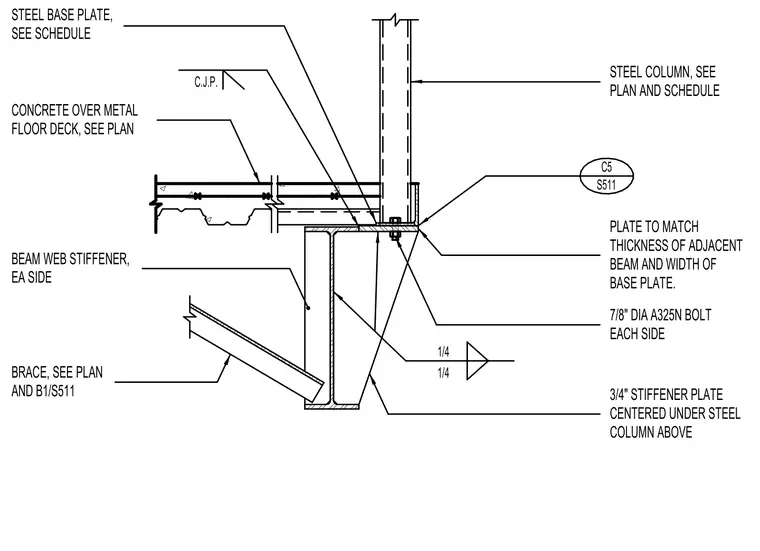

A steel column connects to a steel base plate sized per schedule and anchored with seven-eighths inch diameter A325N bolts on each side. The base rests on a supporting steel beam fitted with a three-quarter inch stiffener plate centered under the column above, along with beam web stiffeners on each side attached with quarter-inch fillet welds. A brace framing member connects to the beam web assembly. A concrete over metal floor deck abuts the base plate, which features a plate matching the thickness of the adjacent beam and the width of the base plate. Complete joint penetration welds are specified at the structural connections.
C5 S511 1/4 1/4 STEEL COLUMN, SEE PLAN AND SCHEDULE BEAM WEB STIFFENER, EA SIDE BRACE, SEE PLAN AND B1/S511 3/4" STIFFENER PLATE PLATE TO MATCH CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BASE PLATE, SEE SCHEDULE C.J.P. THICKNESS OF ADJACENT BEAM AND WIDTH OF BASE PLATE. CENTERED UNDER STEEL COLUMN ABOVE 7/8" DIA A325N BOLT EACH SIDE
