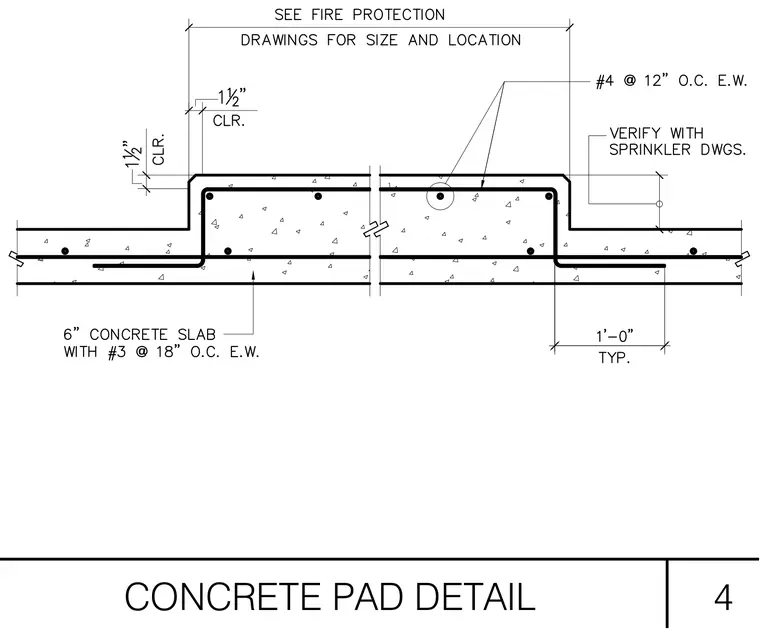

A six-inch concrete slab is reinforced with number three bars at eighteen inches on center each way, incorporating a thickened pad section reinforced with number four bars at twelve inches on center each way. The pad has one and a half inches of clearance on both top and sides, with reinforcing bars extending one foot typical into the adjacent slab. The dimensions and locations must be verified with fire protection and sprinkler drawings.
