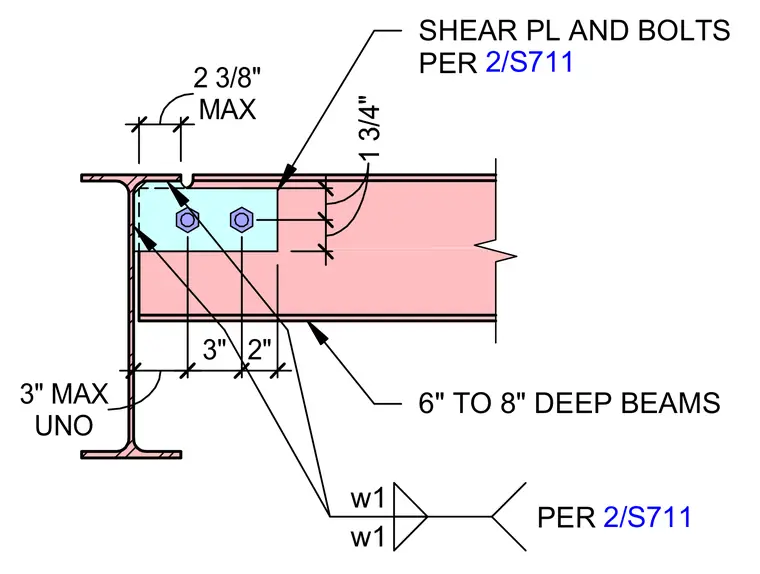

A shallow steel beam measuring six to eight inches deep connects to a support using a two-bolt single plate shear connection. Two high-strength bolts secure the beam web through a shear plate detailed per sheet S711. Fillet welds sized w1 secure the plate assembly. Vertical and horizontal edge distances of one and three-quarter inches, two inches, and three inches govern the bolt layout and plate positioning.
SHEAR PL AND BOLTS PER w1 w1 PER 1 3/4" 1 3/4" 3" 2" 6" TO 8" DEEP BEAMS MAX 2 3/8" UNO 3" MAX 2/S711 2/S711
