Beam Moment Connection at Concrete Pier or Shear Wall

Materials

Steel

Elements

Beams Walls

Connections

Moment Connection Welded Connection Rebar Splice / Development

About this detail

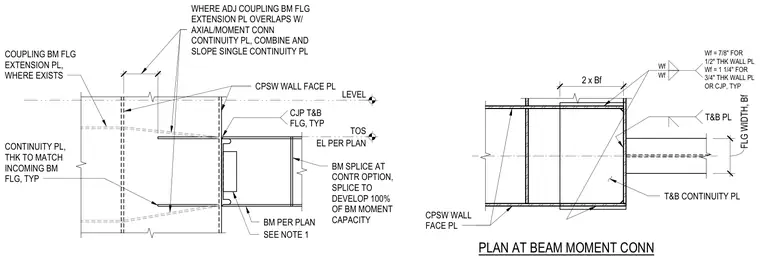

This plan detail shows a steel beam framing into a concrete-filled steel plate shear wall face plate with a welded moment connection. The top and bottom beam flanges connect to the wall via complete joint penetration welds, with top and bottom continuity plates matching the incoming beam flange thickness. A beam splice is provided at the contractor's option, designed to develop one hundred percent of the beam moment capacity. Where adjacent coupling beam flange extension plates overlap with the axial and moment connection, the continuity plates are combined and sloped into a single plate.
