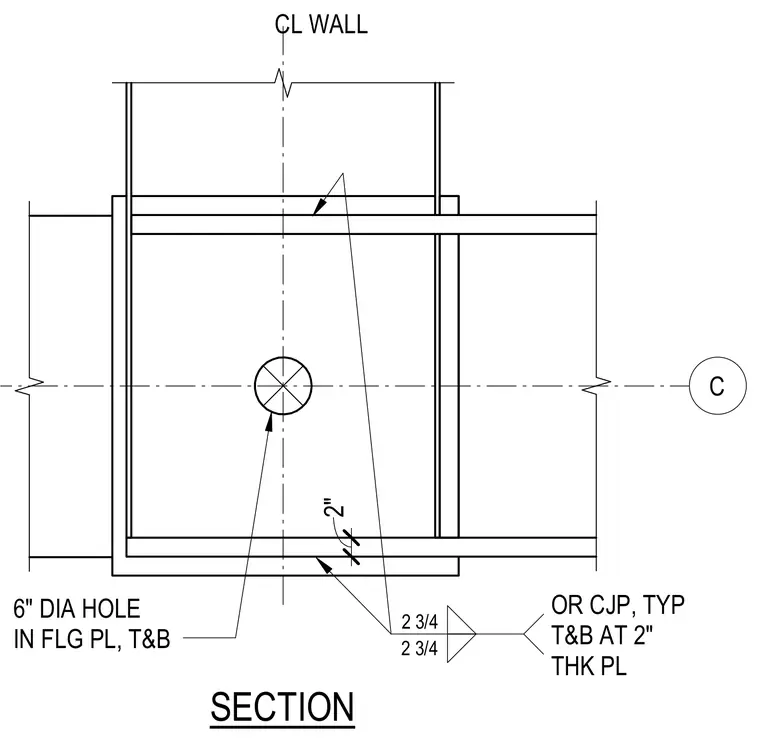

A structural steel wall centerline connection detail incorporating a two-inch thick plate with a six-inch diameter hole centered in the flange plate top and bottom. Welds are specified as complete joint penetration welds or top and bottom welds typical at the two-inch thick plate.
C CL WALL 2" 6" DIA HOLE IN FLG PL, T&B OR CJP, TYP T&B AT 2" THK PL 2 3/4 2 3/4 SECTION
