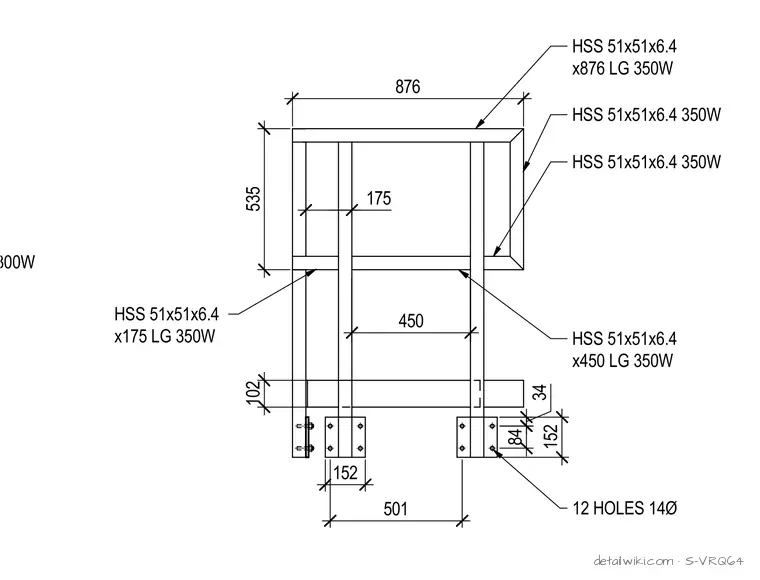

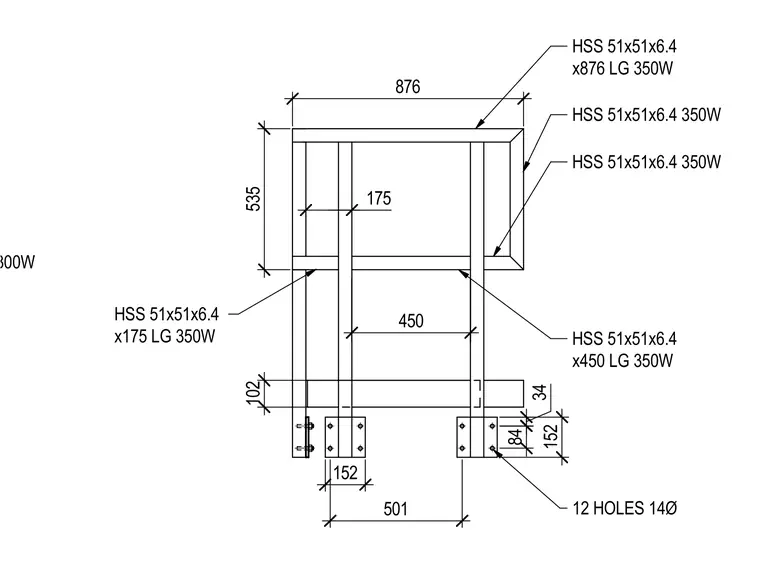

This structural steel handrail assembly utilizes hollow structural section members of 51x51x6.4 dimensions in grade 350W steel. The top rail measures 876 millimeters in length, supported by vertical posts and intermediate rails secured with welded connections. Base connection plates measuring 152 millimeters feature twelve 14-millimeter diameter bolt holes for anchorage. A flat bar component measuring 6.4x102 millimeters in 300W steel integrates into the lower mounting assembly.
F.B. 6.4x102 300W 876 535 175 102 152 501 34 84 152 450 HSS 51x51x6.4 x876 LG 350W HSS 51x51x6.4 350W HSS 51x51x6.4 350W HSS 51x51x6.4 x450 LG 350W HSS 51x51x6.4 x175 LG 350W 12 HOLES 14Ø
