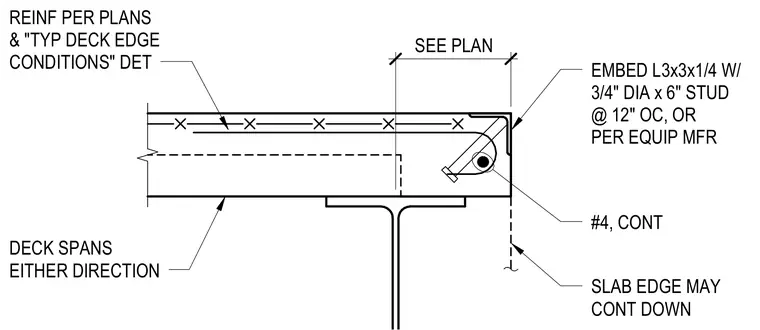

A concrete slab spans over a supporting steel beam with a slab edge that may continue downward. An embedded steel angle L3x3x1/4 with three-quarter-inch diameter by six-inch studs at twelve inches on center anchors the slab corner. Continuous number four reinforcing bars wrap around the embedment anchor, supplementing the reinforcement detailed per plans and typical deck edge condition requirements.
REINF PER PLANS & "TYP DECK EDGE CONDITIONS" DET EMBED L3x3x1/4 W/ 3/4" DIA x 6" STUD @ 12" OC, OR PER EQUIP MFR DECK SPANS EITHER DIRECTION SLAB EDGE MAY CONT DOWN #4, CONT 8 1/4" SEE PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
