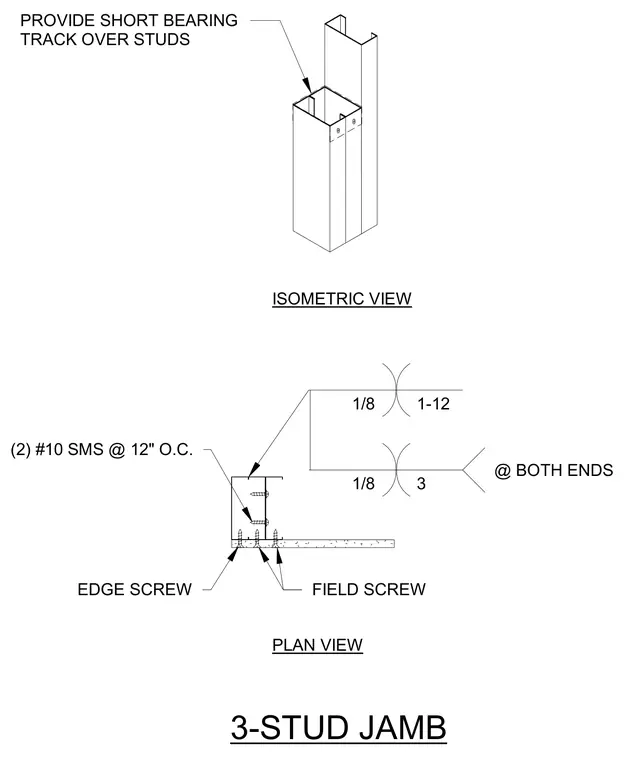

A three-stud cold-formed steel jamb assembly is capped with a short bearing track at the top of the studs. Two number 10 sheet metal screws fasten the members at twelve inches on center. Edge screws and field screws secure the intersecting track components as specified at both ends.
1/8 1-12 1/8 3 @ BOTH ENDS EDGE SCREW FIELD SCREW PLAN VIEW 3-STUD JAMB ISOMETRIC VIEW (2) #10 SMS @ 12" O.C. PROVIDE SHORT BEARING TRACK OVER STUDS
