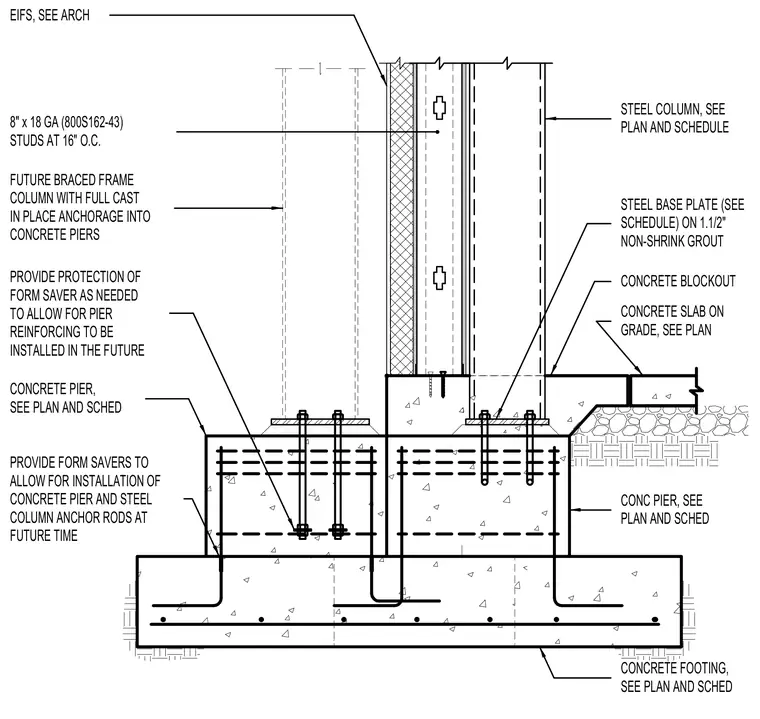

A structural steel column is supported by a steel base plate resting on one and one-half inches of non-shrink grout over a reinforced concrete pier and continuous concrete footing. A concrete slab on grade abuts the pier with a concrete blockout. Adjacent light-gauge steel framing with eight-inch by eighteen gauge studs at sixteen inches on center receives exterior insulation and finish system cladding. A future braced frame column position is cast with full in-place anchorage into an adjacent concrete pier, utilizing form savers and protection sleeves to allow future installation of anchor rods and pier reinforcing.
CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT CONCRETE FOOTING, SEE PLAN AND SCHED EIFS, SEE ARCH 8" x 18 GA (800S162-43) STUDS AT 16" O.C. CONC PIER, SEE PLAN AND SCHED FUTURE BRACED FRAME COLUMN WITH FULL CAST IN PLACE ANCHORAGE INTO CONCRETE PIERS PROVIDE FORM SAVERS TO ALLOW FOR INSTALLATION OF CONCRETE PIER AND STEEL COLUMN ANCHOR RODS AT FUTURE TIME PROVIDE PROTECTION OF FORM SAVER AS NEEDED TO ALLOW FOR PIER REINFORCING TO BE INSTALLED IN THE FUTURE CONCRETE PIER, SEE PLAN AND SCHED
