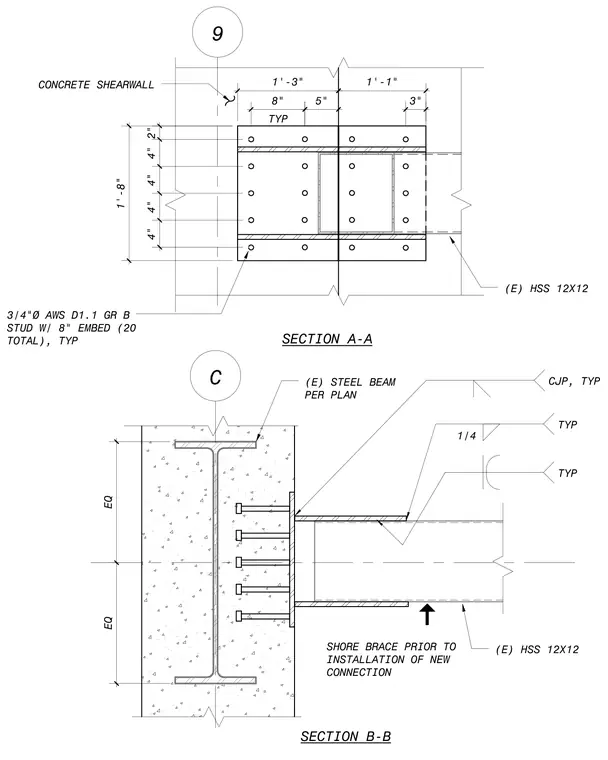

An existing hollow structural section member connects to an existing steel beam embedded within a concrete shear wall. The connection utilizes a plate welded to the structural section with complete joint penetration welds and a quarter-inch fillet weld. Twenty three-quarter-inch diameter AWS D1.1 Grade B studs with eight-inch embeds anchor the embedded steel beam into the concrete shear wall. The assembly requires shoring the brace prior to the installation of the new connection.
3/4"Ø AWS D1.1 GR B STUD W/ 8" EMBED (20 TOTAL), TYP 1'-3" 1'-8" 1/4 TYP TYP CJP, TYP 1'-1" SECTION A-A SECTION B-B 4" 4" 4" 4" 2" (E) HSS 12X12 (E) STEEL BEAM PER PLAN SHORE BRACE PRIOR TO INSTALLATION OF NEW CONNECTION (E) HSS 12X12 CONCRETE SHEARWALL 9 C TYP 8" 5" 3" EQ EQ
