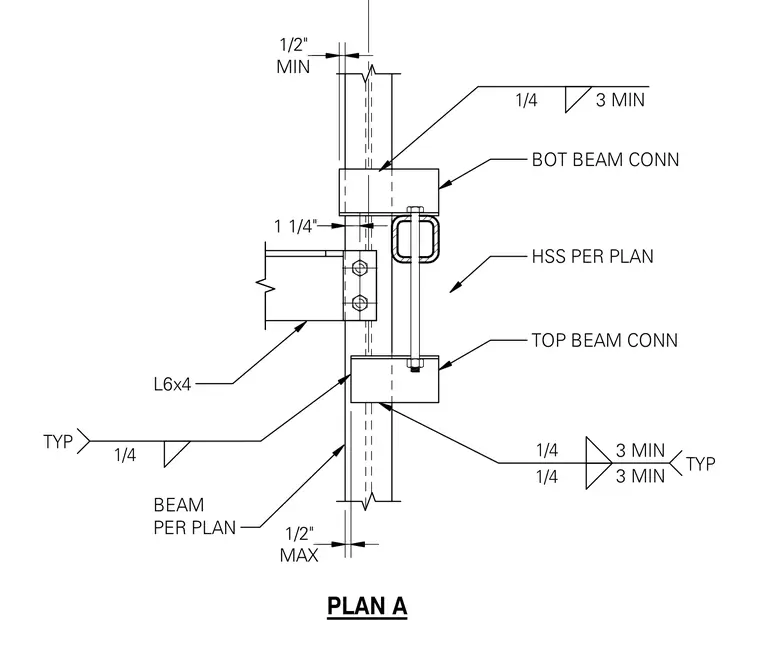

A beam per plan connects to a hollow structural section column specified per plan using an L6x4 angle acting as a shear tab. The top and bottom beam connections are detailed with quarter-inch fillet welds of three-inch minimum length typically. A clearance of one-half inch minimum to one-half inch maximum is maintained at the structural members. Additional threaded rod or fastening hardware ties the top and bottom connection elements across the hollow structural section member.
PLAN A 1/4 MIN 1/2" HSS PER PLAN TOP BEAM CONN BEAM PER PLAN MAX 1/2" 1/4 1/4 TYP 1/4 TYP BOT BEAM CONN 3 MIN 3 MIN 3 MIN L6x4 1 1/4"
