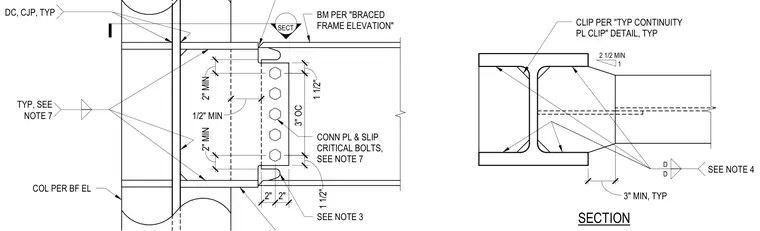

A structural steel beam connects to a column using a connection plate secured with slip-critical bolts and complete joint penetration welds. Continuity plates are welded to the column flanges with complete joint penetration welds typically. The beam flanges feature clipped corners with a slope of two and one-half to one. Additional clips are provided per the typical continuity plate detail.
SECT SEE NOTE 4 D D CLIP PER "TYP CONTINUITY PL CLIP" DETAIL, TYP 2 1/2 MIN 1 SECTION 4" 3" MIN, TYP DC, CJP, TYP TYP, SEE NOTE 7 4 1/2" 2" MIN 2" MIN 1/2" MIN 1 1/2" 12" 1 1/2" 3" OC 2" 2" COL PER BF EL SEE NOTE 3 CONN PL & SLIP CRITICAL BOLTS, SEE NOTE 7 FLG BM PER "BRACED FRAME ELEVATION"
