Embedded piping and conduit within a concrete slab or wall are restricted to a maximum diameter of T divided by 3 or 2 inches, whichever is smaller, centered along the member thickness T. Center-to-center spacing between embedded conduits must be maintained at a minimum of 3 times the diameter D. Penetrating piping and conduit pass directly through the concrete slab or wall perpendicular to the member faces.

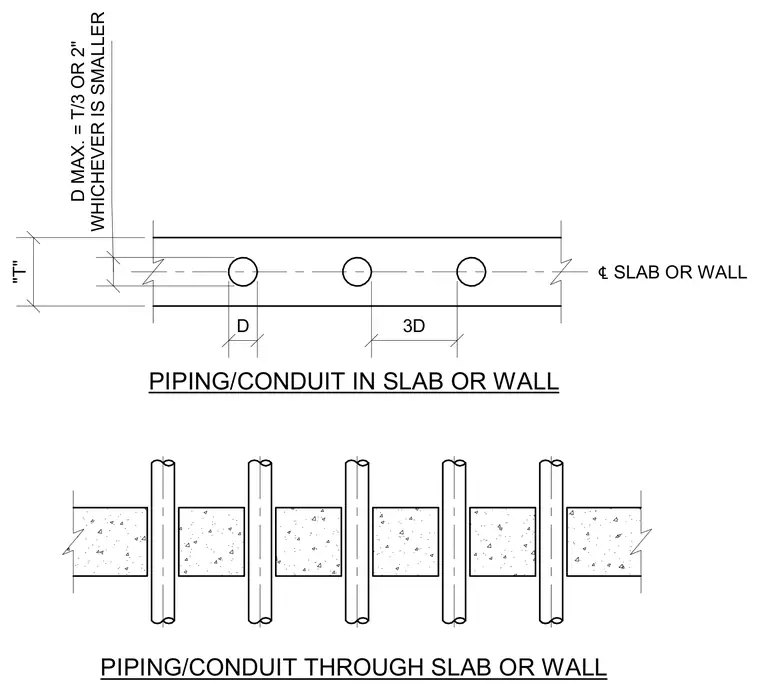

PIPING/CONDUIT THROUGH SLAB OR WALL PIPING/CONDUIT IN SLAB OR WALL "T" ℄ SLAB OR WALL D 3D WHICHEVER IS SMALLER D MAX. = T/3 OR 2"
