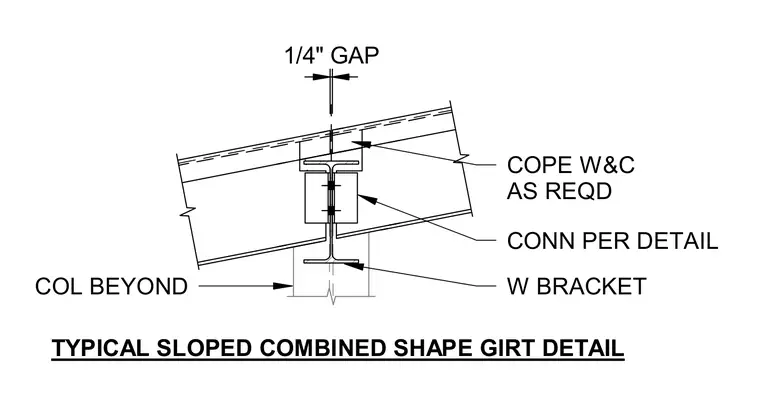

A sloped combined shape girt connects to a wide-flange bracket with a connection per detail. A one-quarter inch gap is maintained above the assembly. The members are coped as required, with a column located beyond.
TYPICAL SLOPED COMBINED SHAPE GIRT DETAIL 1/4" GAP COL BEYOND W BRACKET CONN PER DETAIL COPE W&C AS REQD
