A cable rail screen post connects to a structural steel beam using three-eighths-inch plate welded to the beam flanges with three-eighths-inch fillet welds. One-half-inch by four-inch plates are attached to each side with one-quarter-inch fillet welds to the flanges and webs. Three-eighths-inch stiffener plates are provided on each side of the screen post, with three-quarter-inch by eight-inch square plates minimum at the screen post and beam intersection. A W12x19 bracing beam connects to the assembly as sized per plan, with connections detailed separately per detail 5/S5.01.

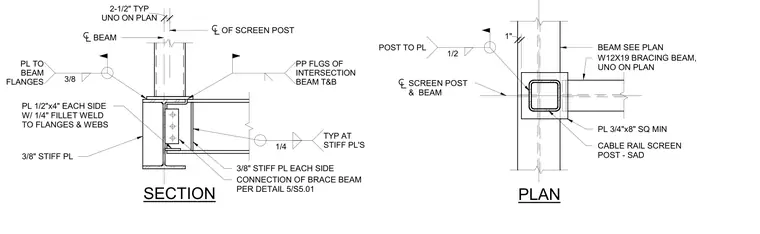

CABLE RAIL SCREEN POST - SAD PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE OF SCREEN POST PL 3/4"x8" SQ MIN SCREEN POST & BEAM BEAM SEE PLAN UNO ON PLAN 2-1/2" TYP PP FLGS OF INTERSECTION BEAM T&B 1/4 TYP AT STIFF PL'S 1" SECTION W12X19 BRACING BEAM, UNO ON PLAN 3/8 PL TO BEAM FLANGES 1/2 POST TO PL CONNECTION OF BRACE BEAM PER DETAIL 5/S5.01
