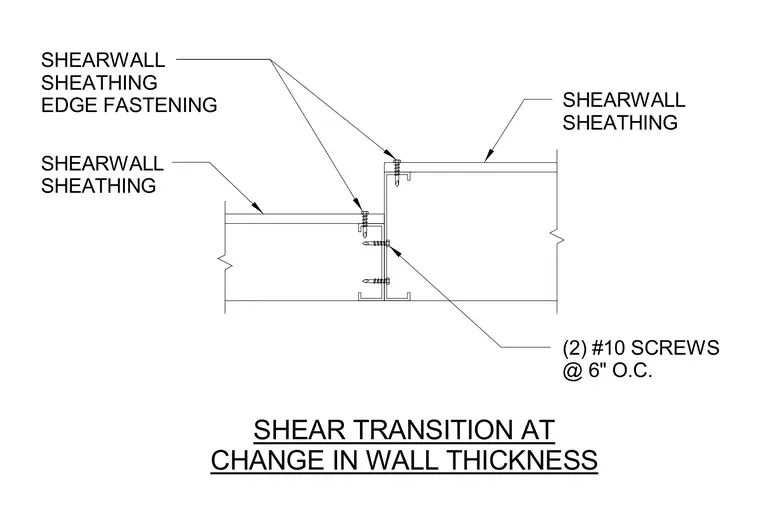

Shearwall sheathing transitions across a step in wall thickness with sheathing edge fastening secured by two number ten screws at six inches on center. The cold-formed steel framing members are joined together by two number ten screws spaced at six inches on center along the vertical web connection.
(2) #10 SCREWS @ 6" O.C. SHEARWALL SHEATHING EDGE FASTENING SHEARWALL SHEATHING SHEARWALL SHEATHING SHEAR TRANSITION AT CHANGE IN WALL THICKNESS
