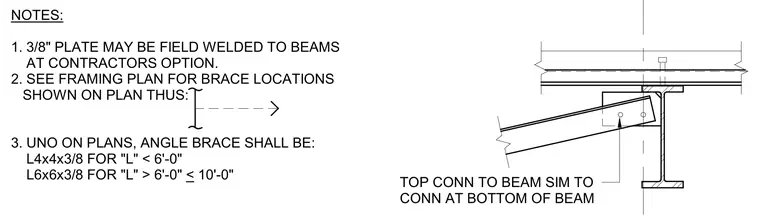

An angle brace connects to a gusset plate welded or field-attached to the web of a structural steel beam beneath a metal deck. The three-eighths-inch plate may be field welded to the beams at the contractor's option. Angle braces are sized based on length, using L4x4x3/8 angles for spans under six feet and L6x6x3/8 angles for spans between six and ten feet, unless noted otherwise on plans.
TOP CONN TO BEAM SIM TO CONN AT BOTTOM OF BEAM NOTES: 1. 3/8" PLATE MAY BE FIELD WELDED TO BEAMS AT CONTRACTORS OPTION. 2. SEE FRAMING PLAN FOR BRACE LOCATIONS SHOWN ON PLAN THUS: 3. UNO ON PLANS, ANGLE BRACE SHALL BE: L4x4x3/8 FOR "L" < 6'-0" L6x6x3/8 FOR "L" > 6'-0" < 10'-0"
