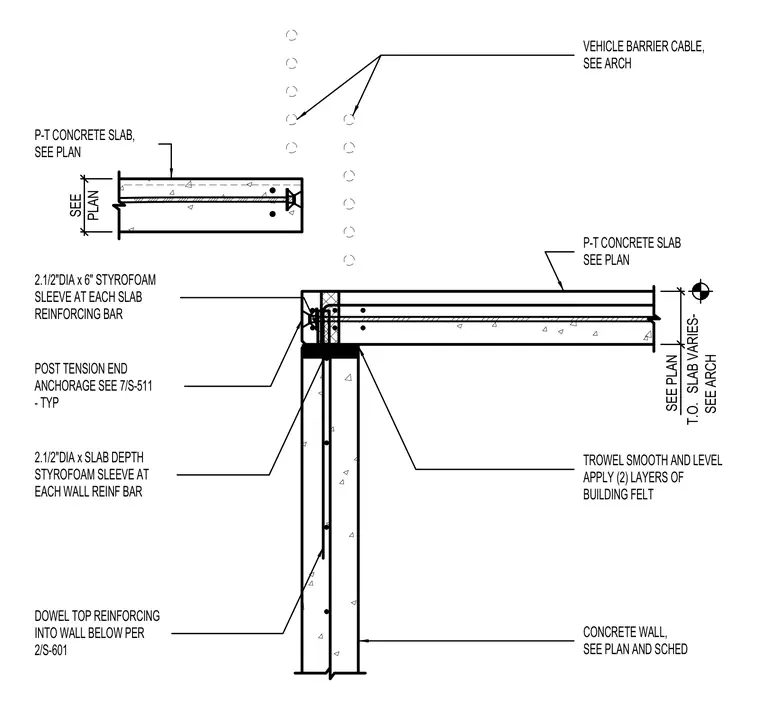

A post-tensioned concrete slab bears on a concrete wall below. The slab features post-tension end anchorages and is isolated from the wall bearing surface by two layers of building felt applied over a trowel-smooth and level finish. A two-and-a-half-inch diameter by six-inch styrofoam sleeve surrounds each slab reinforcing bar, and a two-and-a-half-inch diameter by slab-depth styrofoam sleeve is provided at each wall reinforcing bar. Top reinforcing is doweled into the wall below per structural drawings. Vehicle barrier cables are positioned above the slab edge per architectural plans.
CONCRETE WALL, SEE PLAN AND SCHED POST TENSION END ANCHORAGE SEE 7/S-511 2.1/2"DIA x SLAB DEPTH STYROFOAM SLEEVE AT EACH WALL REINF BAR TROWEL SMOOTH AND LEVEL APPLY (2) LAYERS OF BUILDING FELT 2.1/2"DIA x 6" STYROFOAM SLEEVE AT EACH SLAB REINFORCING BAR DOWEL TOP REINFORCING INTO WALL BELOW PER 2/S-601 P-T CONCRETE SLAB SEE PLAN VEHICLE BARRIER CABLE, SEE ARCH P-T CONCRETE SLAB, SEE PLAN - TYP SEE PLAN SEE PLAN T.O. SLAB VARIES- SEE ARCH
