Structural · S-VQJFD

Interrupted By Opng

Elements

Floors / Slabs Reinforcing Roof / Floor Openings

Connections

About this detail

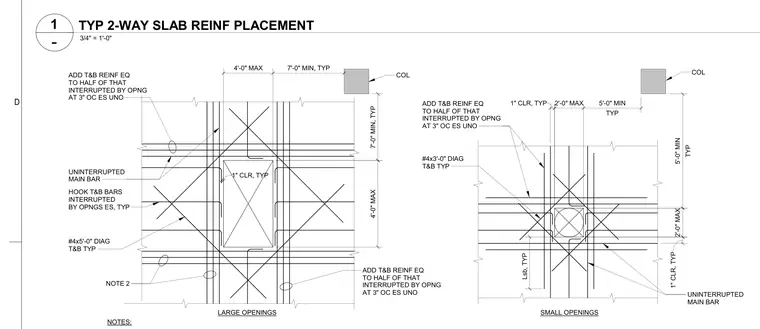

Concrete two-way slab reinforcement placement around large and small slab openings. Additional top and bottom reinforcement equivalent to half of the interrupted steel is added at 3 inches on center each side unless otherwise noted. Uninterrupted main bars continue past openings while interrupted top and bottom bars are hooked at each side. Number 4 diagonal bars of 5-foot length are placed top and bottom typically at large openings, and number 4 diagonal bars of 3-foot length are used at small openings. Minimum 1-inch clear spacing is maintained for reinforcement.
