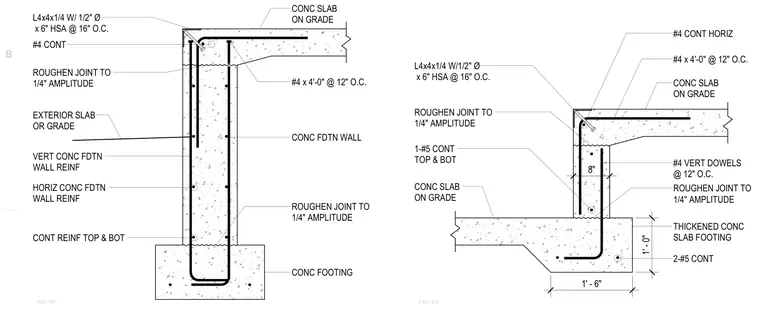

Concrete foundation wall conditions connect to continuous concrete footings and concrete slabs on grade. The foundation wall features continuous horizontal and vertical reinforcing steel along with top and bottom continuous reinforcing in the concrete footing. Construction joints at the top of the footing and wall are specified to be roughened to one-quarter-inch amplitude. The slab-on-grade connection incorporates an embedded L4x4x1/4 angle with one-half-inch diameter by six-inch heavy stud anchors spaced at sixteen inches on center, along with continuous number four reinforcing bars and number four vertical dowels or slab reinforcing at twelve inches on center.
MW3CFW11 CONT REINF TOP & BOT CONC FOOTING ROUGHEN JOINT TO 1/4" AMPLITUDE VERT CONC FDTN WALL REINF EXTERIOR SLAB OR GRADE HORIZ CONC FDTN WALL REINF #4 CONT #4 x 4'-0" @ 12" O.C. CONC SLAB ON GRADE L4x4x1/4 W/ 1/2" Ø x 6" HSA @ 16" O.C. ROUGHEN JOINT TO 1/4" AMPLITUDE CONC FDTN WALL MW3CFW12 L4x4x1/4 W/1/2" Ø x 6" HSA @ 16" O.C. 1-#5 CONT TOP & BOT CONC SLAB ON GRADE 2-#5 CONT THICKENED CONC SLAB FOOTING CONC SLAB ON GRADE #4 VERT DOWELS @ 12" O.C. #4 x 4'-0" @ 12" O.C. #4 CONT HORIZ ROUGHEN JOINT TO 1/4" AMPLITUDE ROUGHEN JOINT TO 1/4" AMPLITUDE 8" 1' - 0" 1' - 6" B
