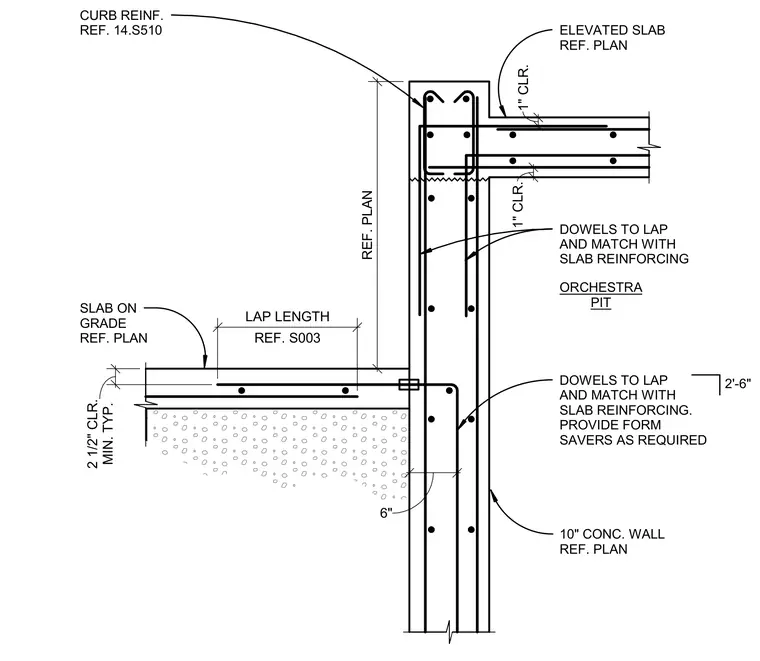

An elevated slab and a slab on grade tie into a ten-inch concrete wall surrounding an orchestra pit. Dowels lap and match with the slab reinforcing, with form savers provided as required. A curb reinforcement detail is specified at the top of the wall. Clearances include one inch and two-and-a-half inches minimum typical.
REF. S003 LAP LENGTH MIN. TYP. 2 1/2" CLR. SLAB ON GRADE REF. PLAN DOWELS TO LAP AND MATCH WITH SLAB REINFORCING. PROVIDE FORM SAVERS AS REQUIRED 10" CONC. WALL REF. PLAN 2'-6" 1" CLR. 1" CLR. CURB REINF. REF. 14.S510 ELEVATED SLAB REF. PLAN ORCHESTRA PIT 6" REF. PLAN DOWELS TO LAP AND MATCH WITH SLAB REINFORCING
