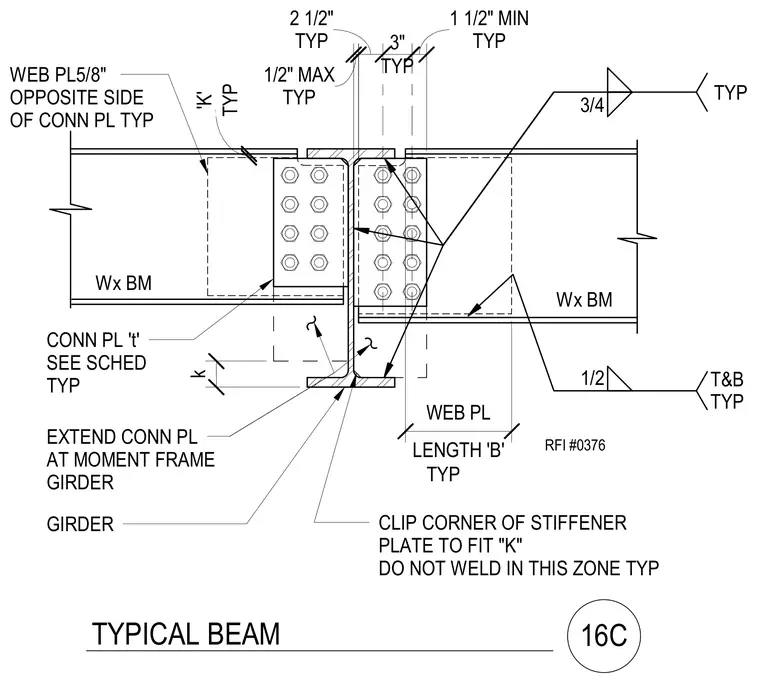

A wide-flange beam connects to a wide-flange girder using an extended connection plate welded to the top and bottom flanges. Five-eighths-inch web plates are attached to the opposite side of the connection plate. Stiffener plates with clipped corners are fitted to the girder web, leaving a specified clearance at the "k" dimension and left unwelded in that zone. Three-quarter-inch and one-half-inch fillet welds secure the connection assembly as detailed.
Wx BM GIRDER EXTEND CONN PL AT MOMENT FRAME GIRDER Wx BM CLIP CORNER OF STIFFENER PLATE TO FIT "K" DO NOT WELD IN THIS ZONE TYP CONN PL 't' SEE SCHED TYP 3/4 TYP k TYP 2 1/2" TYP 3" TYP 1 1/2" MIN TYP 1/2" MAX T&B TYP 1/2 LENGTH 'B' WEB PL TYP WEB PL5/8" OPPOSITE SIDE OF CONN PL TYP TYP 'K' RFI #0376 TYPICAL BEAM 16C
