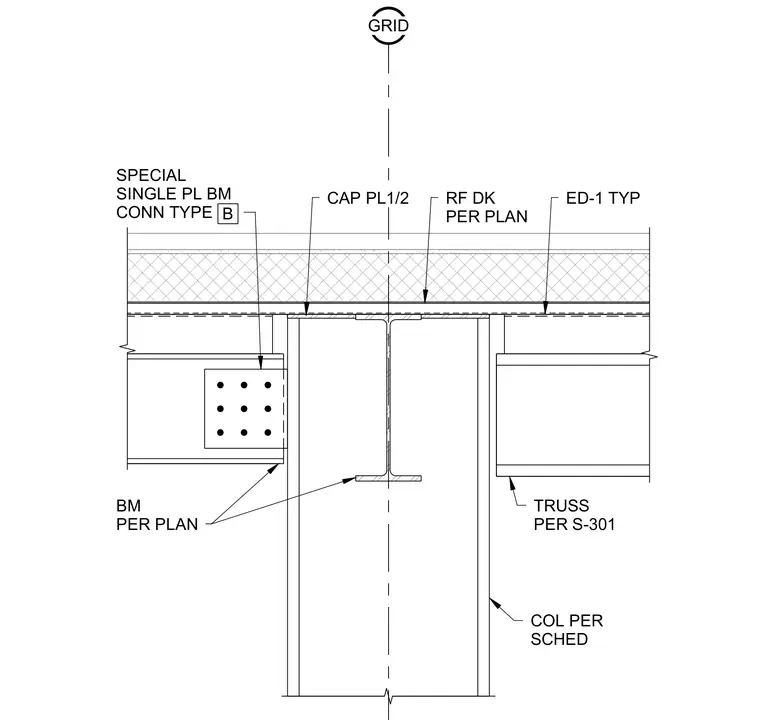

A structural steel column sized per schedule aligns with a grid line and is topped with a one-half-inch cap plate. A roof deck sized per plan rests above, supported by edge details typical per the drawings. A beam connects to the column flange using a special single plate beam connection type B. A structural truss sized per schedule connects on the opposite side.
3 COL PER SCHED TRUSS PER S-301 ED-1 TYP RF DK PER PLAN CAP PL1/2 BM PER PLAN GRID SPECIAL SINGLE PL BM CONN TYPE B S-301
