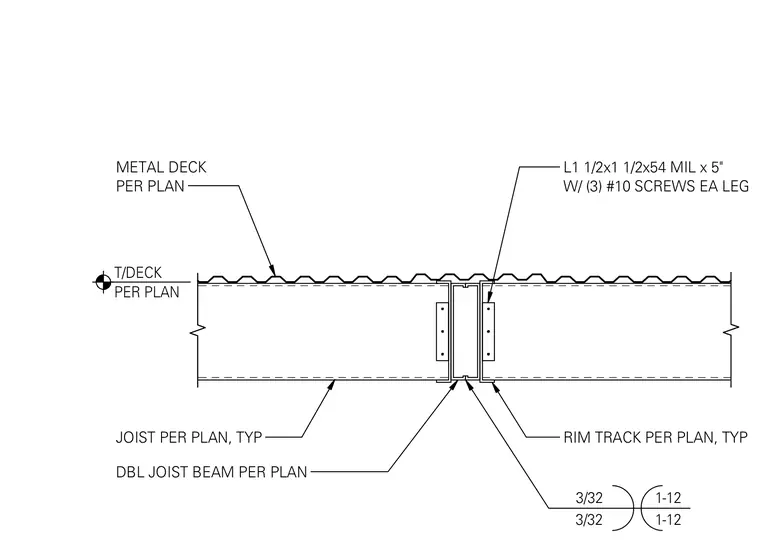

Double joist beams are bridged together with a 54-mil angle measuring 1 1/2 inches by 1 1/2 inches by 5 inches long. Each leg of the angle is secured with three number 10 screws. The assembly supports a metal deck as sized per plan.
T/DECK PER PLAN METAL DECK PER PLAN L1 1/2x1 1/2x54 MIL x 5" W/ (3) #10 SCREWS EA LEG RIM TRACK PER PLAN, TYP JOIST PER PLAN, TYP DBL JOIST BEAM PER PLAN 3/32 1-12 3/32 1-12
