Base Cabinet at Appliance and Corner Wall Cabinet Details

Materials

Elements

Walls Floors / Slabs Millwork / Casework Anchors / Embeds

About this detail

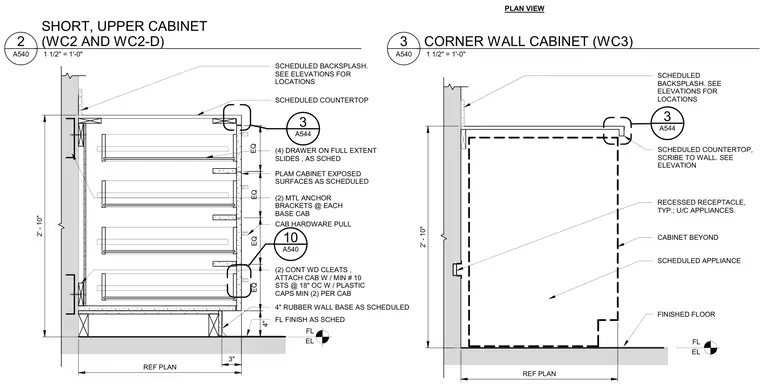

Casework installations feature base cabinets with four drawers on full extension slides, continuous wood cleats, and metal anchor brackets attached to the wall. The countertop and backsplash are scheduled per finishes, and a four-inch rubber wall base finishes the floor junction. A companion detail includes a corner wall cabinet layout above scheduled appliances with a recessed electrical receptacle.
