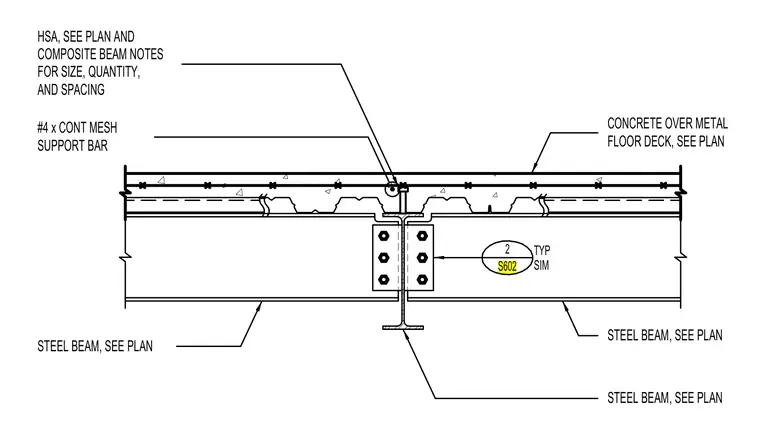

A structural steel beam supports a concrete slab over a profiled metal floor deck with headed shear anchors welded through the deck into the top flange of the beam. A continuous number four mesh support bar runs parallel to the beam within the concrete slab. Steel beams are sized per the structural plans. A bolted framing connection joins the secondary beam framing into the supporting girder or primary steel beam.
STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN HSA, SEE PLAN AND COMPOSITE BEAM NOTES FOR SIZE, QUANTITY, AND SPACING #4 x CONT MESH SUPPORT BAR STEEL BEAM, SEE PLAN 2 S602 TYP SIM
