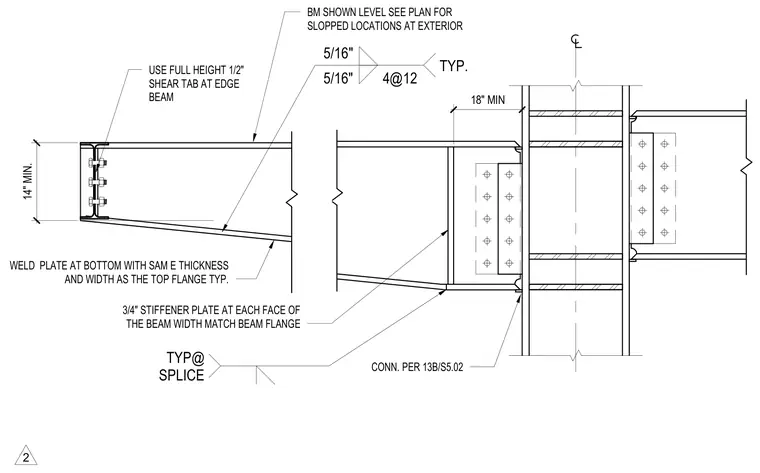

A tapered steel beam connects to a structural steel column using a full-height one-half inch shear tab at the edge beam splice connection. Three-quarter inch stiffener plates are welded to each face of the beam web, matching the beam flange width. A weld plate at the bottom mirrors the thickness and width of the top flange. Five-sixteenth inch fillet welds attach the components with specified spacing.
14" MIN. WELD PLATE AT BOTTOM WITH SAM E THICKNESS AND WIDTH AS THE TOP FLANGE TYP. 3/4" STIFFENER PLATE AT EACH FACE OF THE BEAM WIDTH MATCH BEAM FLANGE 18" MIN 5/16" 4@12 5/16" TYP. USE FULL HEIGHT 1/2" SHEAR TAB AT EDGE BEAM TYP@ SPLICE CONN. PER 13B/S5.02 BM SHOWN LEVEL SEE PLAN FOR SLOPPED LOCATIONS AT EXTERIOR 2
