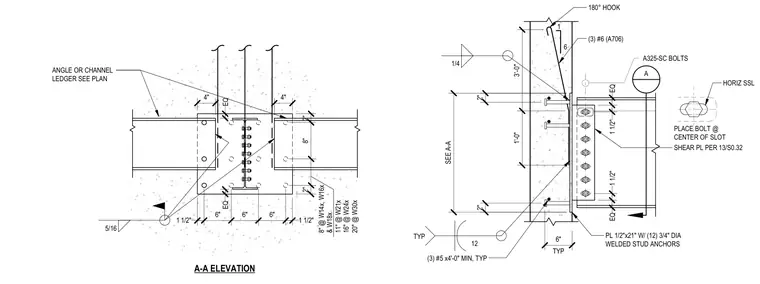

A steel girder frames into a reinforced concrete wall using a shear plate and slip-critical bolts. The assembly includes a plate measuring 1/2 inch by 21 inches equipped with twelve 3/4-inch diameter welded stud anchors embedded in the concrete. Three #6 A706 reinforcing bars with 180-degree hooks and three #5 bars at 4 feet 0 inches minimum length reinforce the wall pocket. A325-SC bolts secure the girder web to the shear plate through slotted holes where bolts are centered. An angle or channel ledger is provided per plan with 5/16-inch fillet welds.
8" @ W14x, W16x & W18x 11" @ W21x 16" @ W24x 20" @ W30x 1 1/2" 6" 6" 6" 1 1/2" 4" 4" 2" 8" 2" EQ EQ ANGLE OR CHANNEL LEDGER SEE PLAN 5/16 A PLACE BOLT @ CENTER OF SLOT SHEAR PL PER 13/S0.32 12 TYP 1/4 (3) #5 x4'-0" MIN, TYP PL 1/2"x21" W/ (12) 3/4" DIA WELDED STUD ANCHORS (3) #6 (A706) A325-SC BOLTS HORIZ SSL 180° HOOK TYP 6" 2" SEE A-A A-A ELEVATION 2" 1'-0" 3'-0" 1 1/2" EQ 1 1/2" EQ 1 6
