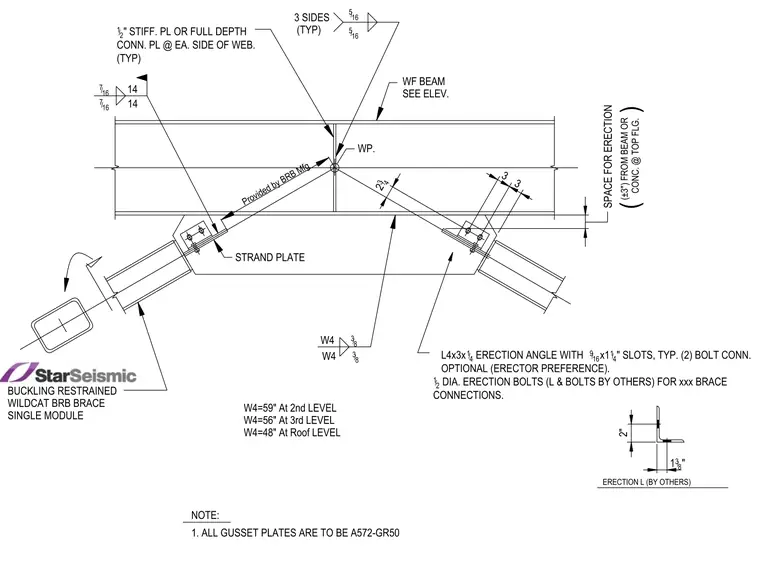

A buckling restrained brace connection frames into a wide flange beam with half-inch stiffener plates or full-depth connection plates on each side of the web. The connection utilizes L4x3x1/4 erection angles with 9/16 by 1-1/4 inch slots and optional two-bolt connections using half-inch diameter erection bolts. A strand plate is provided by the brace manufacturer, and all gusset plates are specified as ASTM A572 Grade 50 steel. A space for erection is maintained at approximately plus or minus 3 inches from the beam or concrete top flange.
3 SIDES (TYP) 5/16 5/16 1/2 " STIFF. PL OR FULL DEPTH CONN. PL @ EA. SIDE OF WEB. (TYP) BUCKLING RESTRAINED WILDCAT BRB BRACE SINGLE MODULE W4 3/8 1 3/8 " 2" ERECTION L (BY OTHERS) L4x3x 1/4 ERECTION ANGLE WITH 9/16 x1 1/4 " SLOTS, TYP. (2) BOLT CONN. OPTIONAL (ERECTOR PREFERENCE). 1/2 DIA. ERECTION BOLTS (L & BOLTS BY OTHERS) FOR xxx BRACE CONNECTIONS. 2 3/4 3 3 STRAND PLATE CONC. @ TOP FLG. (±3") FROM BEAM OR ( ) SPACE FOR ERECTION WP. WF BEAM SEE ELEV. Provided by BRB Mfg 7/16 14 7/16 14 W4 3/8 W4=59" At 2nd LEVEL W4=56" At 3rd LEVEL W4=48" At Roof LEVEL NOTE: 1. ALL GUSSET PLATES ARE TO BE A572-GR50
