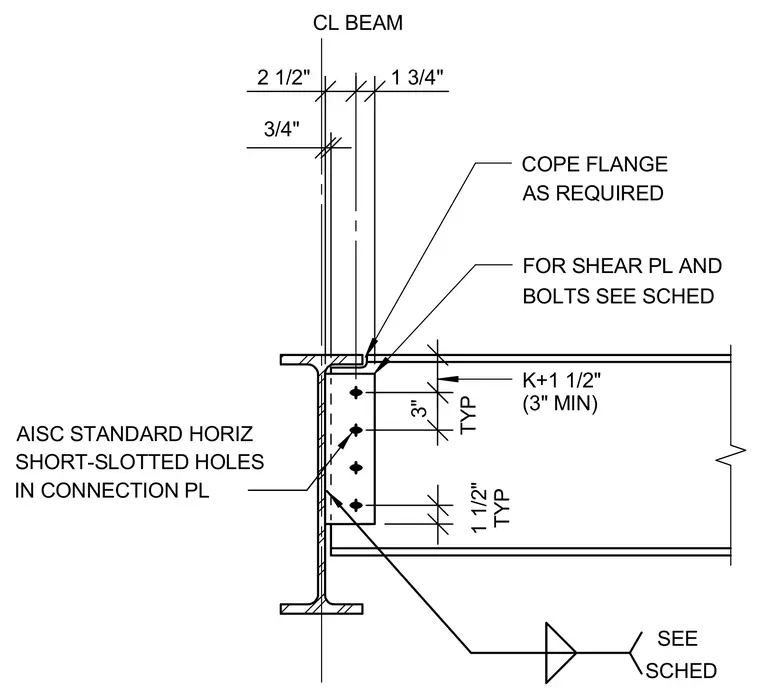

A supported steel beam connects to a supporting beam web using a welded shear plate and high-strength bolts. The top flange of the supported beam is coped as required, maintaining a minimum clearance defined by dimension K plus one and a half inches with a three-inch absolute minimum. The connection plate incorporates American Institute of Steel Construction standard horizontal short-slotted holes. Bolt sizes, plate dimensions, and weld sizes are specified per the structural schedule.
1 1/2" TYP 3" 1 3/4" 2 1/2" 3/4" COPE FLANGE CL BEAM FOR SHEAR PL AND BOLTS SEE SCHED K+1 1/2" (3" MIN) AS REQUIRED SCHED SEE TYP AISC STANDARD HORIZ SHORT-SLOTTED HOLES IN CONNECTION PL
