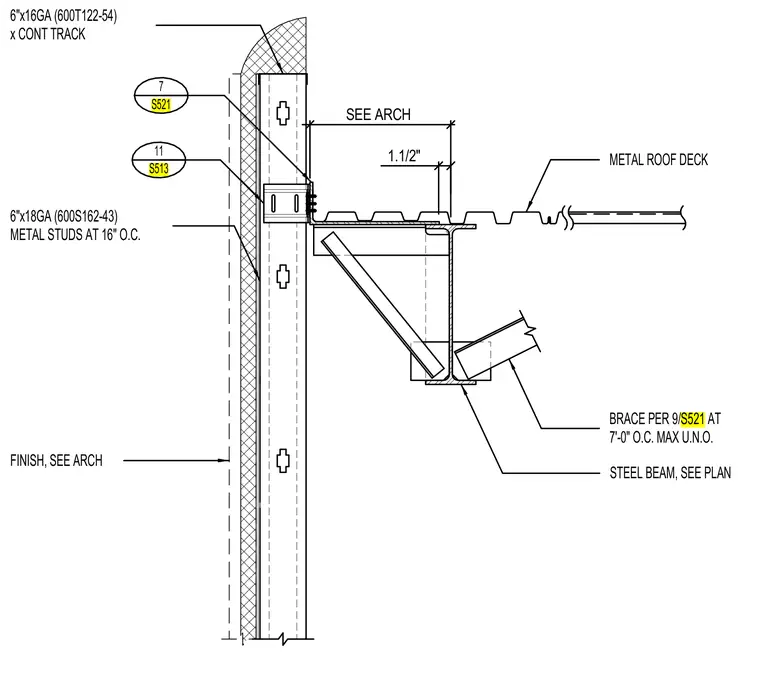

A steel beam supports a metal roof deck with a 1-1/2 inch bearing condition and bracing spaced at seven feet on center maximum unless noted otherwise. The exterior wall consists of six-inch by eighteen-gauge metal studs spaced at sixteen inches on center with a continuous track and a six-inch by sixteen-gauge track member at the top. Exterior finishes are coordinated per architectural drawings.
STEEL BEAM, SEE PLAN BRACE PER 9/S521 AT 7'-0" O.C. MAX U.N.O. METAL ROOF DECK 6"x16GA (600T122-54) x CONT TRACK FINISH, SEE ARCH 6"x18GA (600S162-43) METAL STUDS AT 16" O.C. 11 S513 7 S521 1.1/2" SEE ARCH
