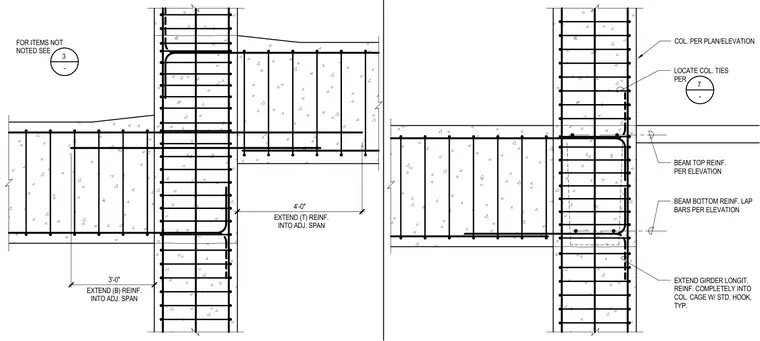

Concrete beam and column intersections detail continuous longitudinal reinforcement development and confinement details. Girder longitudinal reinforcement extends completely into the column cage with a standard hook. Bottom and top beam reinforcement extends into adjacent spans or laps per elevation notes. Column ties are spaced and located according to plan and elevation specifications.
7 - 3 - NOTED SEE FOR ITEMS NOT COL. PER PLAN/ELEVATION LOCATE COL. TIES PER BEAM TOP REINF. PER ELEVATION BEAM BOTTOM REINF. LAP BARS PER ELEVATION EXTEND GIRDER LONGIT. REINF. COMPLETELY INTO COL. CAGE W/ STD. HOOK, TYP. 3'-0" 4'-0" EXTEND (B) REINF. INTO ADJ. SPAN EXTEND (T) REINF. INTO ADJ. SPAN
