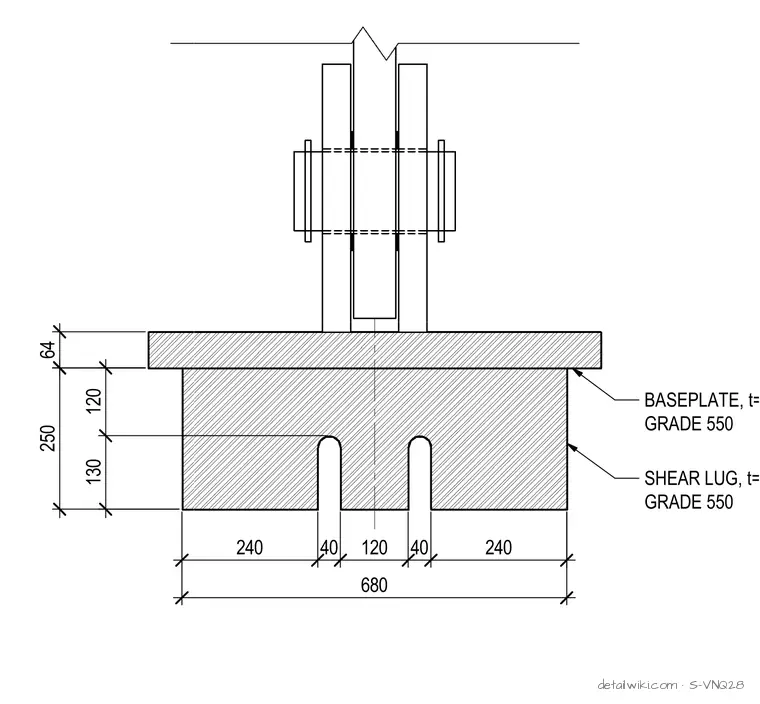

The assembly features a steel base plate welded or connected to vertical steel plates and a vertical element secured with horizontal bolts. Below the base plate, a shear lug made of Grade 550 steel is detailed with dimensional callouts indicating thicknesses and clearances. The configuration is designed to transfer lateral shear loads effectively from the superstructure into the underlying foundation or structural element.
Text on the drawing
240 40 120 40 240 130 120 250 64 680 BASEPLATE, t=64 GRADE 550 SHEAR LUG, t=64 GRADE 550
