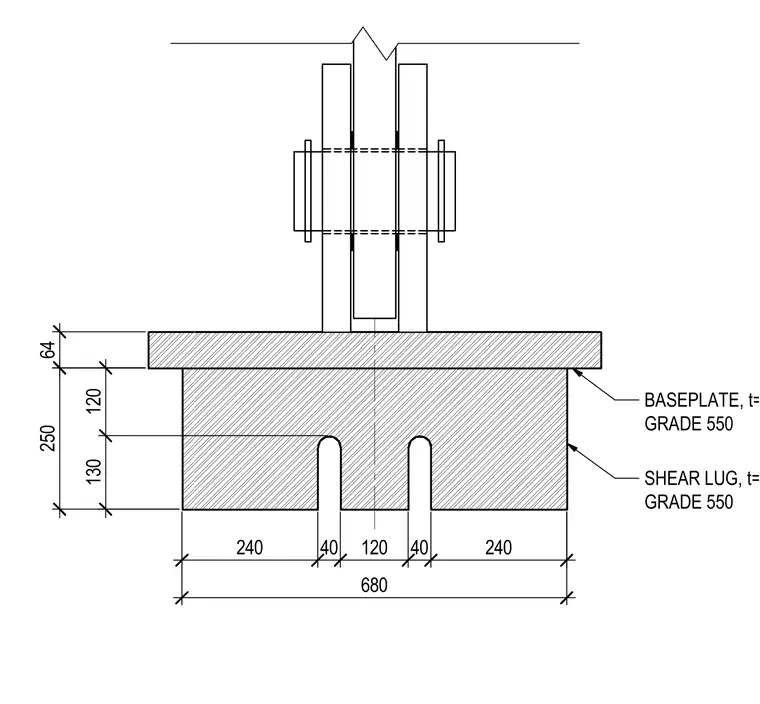

This structural connection features a thick baseplate and an integrated shear lug welded to the underside, both constructed from Grade 550 steel with a thickness of 64 millimeters. The shear lug measures 680 millimeters in total width with internal cutouts and dimensions of 240, 40, 120, 40, and 240 millimeters. The vertical plate extending upward is secured with horizontal through-bolts and washers.
240 40 120 40 240 130 120 250 64 680 BASEPLATE, t=64 GRADE 550 SHEAR LUG, t=64 GRADE 550
