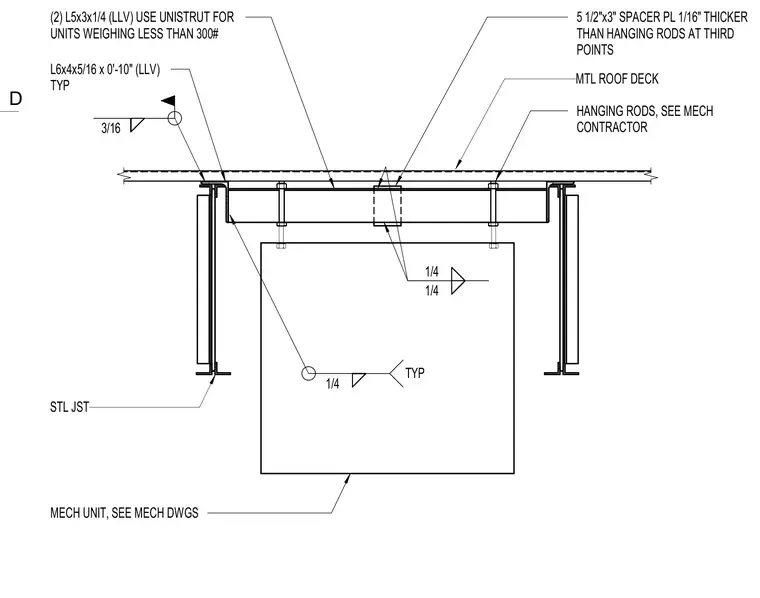

Suspended mechanical unit supported from steel joists beneath a metal roof deck using structural angles and hanging rods. Two L5x3x1/4 angles span between the joists, or Unistrut is used for units weighing less than 300 pounds. L6x4x5/16 by ten-inch long angles are typically welded with three-sixteenth-inch fillet welds. Five-and-a-half-inch by three-inch spacer plates one-sixteenth-inch thicker than the hanging rods are placed at the third points. Hanging rods coordinate with the mechanical contractor to support the mechanical unit below.
MECH UNIT, SEE MECH DWGS (2) L5x3x1/4 (LLV) USE UNISTRUT FOR UNITS WEIGHING LESS THAN 300# L6x4x5/16 x 0'-10" (LLV) TYP HANGING RODS, SEE MECH CONTRACTOR 5 1/2"x3" SPACER PL 1/16" THICKER THAN HANGING RODS AT THIRD POINTS STL JST MTL ROOF DECK 1/4 TYP 3/16 1/4 1/4 D
