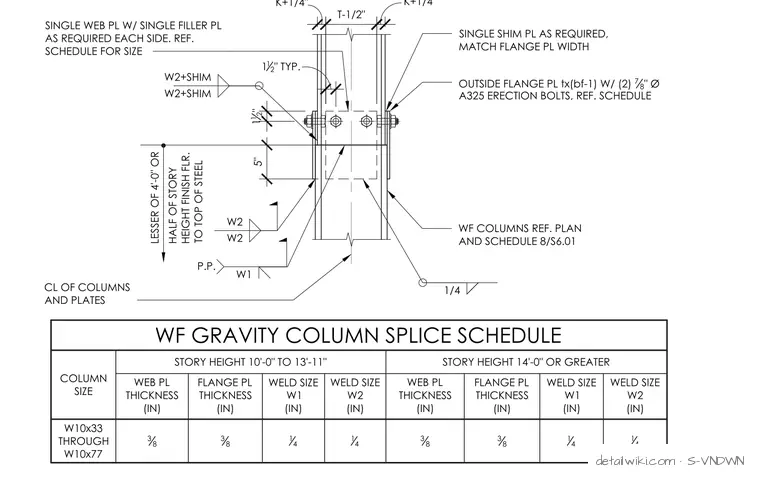

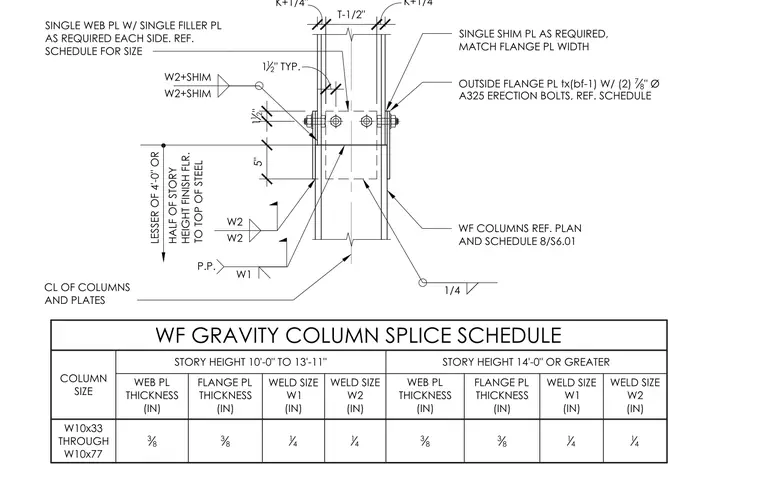

The assembly connects an upper wide-flange steel column to a lower wide-flange steel column using outside flange plates secured with ASTM A325 erection bolts and single web plates with filler or shim plates as required. Welds connect the plates to the respective column flanges and webs. A WF gravity column schedule is included to specify plate thicknesses and weld sizes for different story heights and column sizes.
Text on the drawing
WF GRAVITY COLUMN SPLICE SCHEDULE COLUMN SIZE STORY HEIGHT 10'-0" TO 13'-11" STORY HEIGHT 14'-0" OR GREATER WEB PL THICKNESS (IN) FLANGE PL THICKNESS (IN) WELD SIZE W1 (IN) WELD SIZE W2 (IN) WEB PL THICKNESS (IN) FLANGE PL THICKNESS (IN) WELD SIZE W1 (IN) WELD SIZE W2 (IN) W10x33 THROUGH W10x77 3 8 3 8 14 14 3 8 3 8 14 14 CL OF COLUMNS AND PLATES P.P. W1 W2 W2 1/4 OUTSIDE FLANGE PL tx(bf-1) W/ (2) 7 8 " Ø A325 ERECTION BOLTS, REF. SCHEDULE SINGLE SHIM PL AS REQUIRED, MATCH FLANGE PL WIDTH SINGLE WEB PL W/ SINGLE FILLER PL AS REQUIRED EACH SIDE. REF. SCHEDULE FOR SIZE WF COLUMNS REF. PLAN AND SCHEDULE 8/S6.01 1 12 " 5" K+1/4" T-1/2" K+1/4" W2+SHIM W2+SHIM 1 1 2 " TYP. LESSER OF 4'-0" OR HALF OF STORY HEIGHT FINISH FLR. TO TOP OF STEEL
