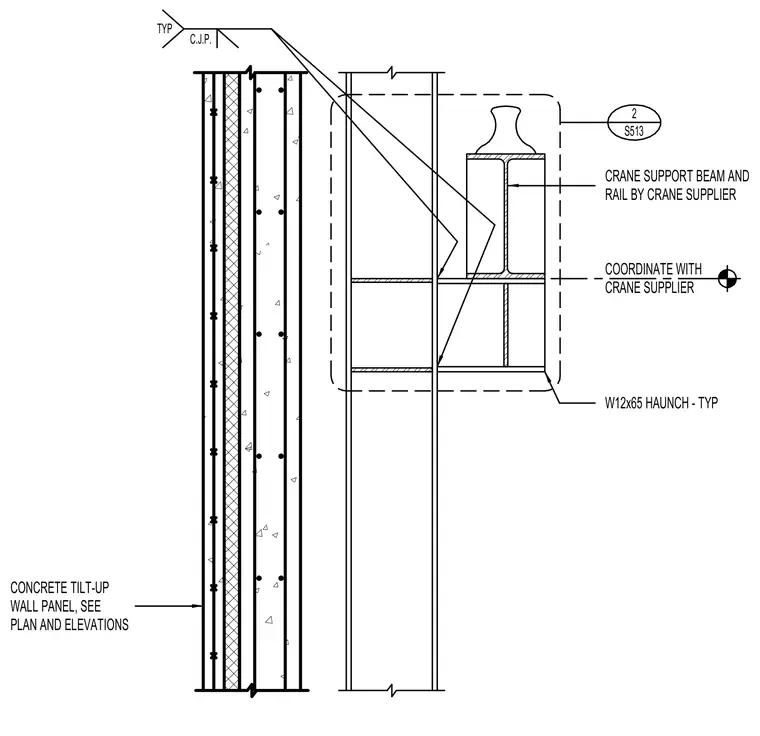

A crane support beam and rail provided by a crane supplier rests on a typical W12x65 steel haunch connected to a concrete tilt-up wall panel. Complete joint penetration welds secure the structural steel haunch assembly, with coordination required for the crane supplier components.
2 S513 CRANE SUPPORT BEAM AND RAIL BY CRANE SUPPLIER TYP C.J.P. CONCRETE TILT-UP WALL PANEL, SEE PLAN AND ELEVATIONS COORDINATE WITH CRANE SUPPLIER W12x65 HAUNCH - TYP
