Structural · S-VN8VP

Tilt-Up Wall Panel Detail

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Beams Walls Roofs Decks Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Shear Tab / Single Plate Bracing Connection Welded Connection Bolted Connection Deck Attachment Embed Plate

About this detail

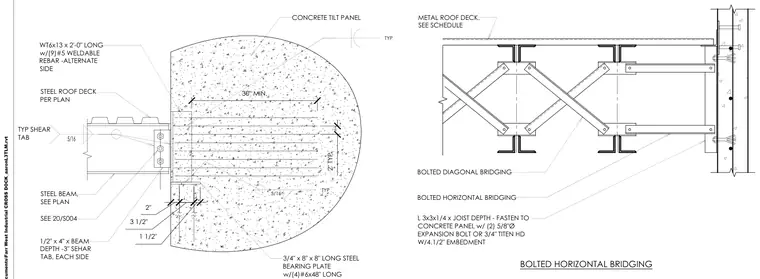

A steel beam connects to a concrete tilt-up wall panel using a 1/2" x 4" x beam depth shear tab on each side, welded with 5/16" fillet welds. The beam bears on a 3/4" x 8" x 8" long steel bearing plate embedded in the concrete panel with four #6 x 48" long anchors and a WT6x13 embedded shape with nine #5 weldable rebar on alternate sides. Metal roof deck bears on top of the steel framing per plan. Bolted diagonal and horizontal bridging consisting of L 3x3x1/4 angles fasten to the concrete panel using two 5/8" diameter expansion bolts or 3/4" Titen HD bolts with 4-1/2" embedment.
