Framing connection around a roof drain opening framed with a wide-flange beam sized per plan. An angle measuring L5x3x1/4 is provided along with an L5x3x1/4 angle six inches long with long legs vertical. Dimensions at roof drains must be coordinated with plumbing and architectural drawings.

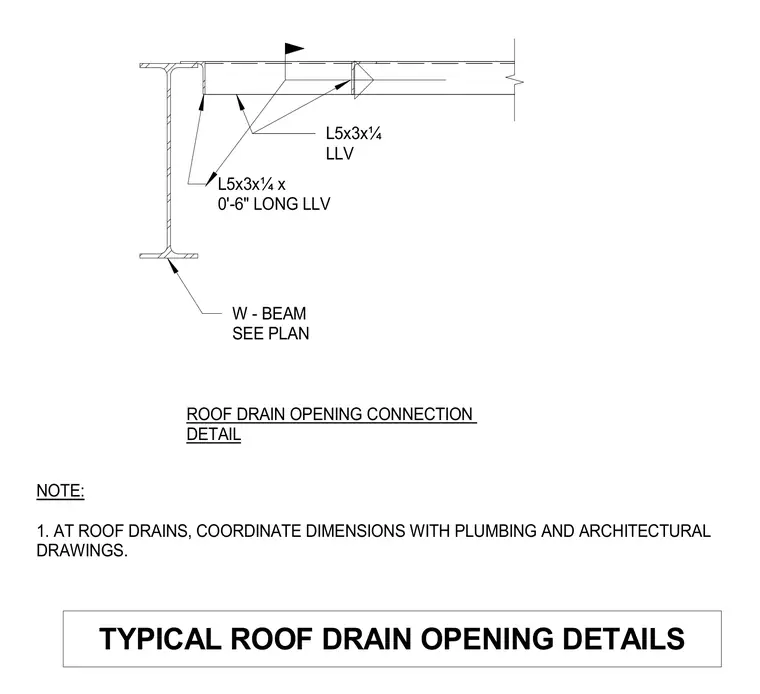

W - BEAM SEE PLAN L5x3x¼ LLV ROOF DRAIN OPENING CONNECTION DETAIL L5x3x¼ x 0'-6" LONG LLV NOTE: 1. AT ROOF DRAINS, COORDINATE DIMENSIONS WITH PLUMBING AND ARCHITECTURAL DRAWINGS. TYPICAL ROOF DRAIN OPENING DETAILS
