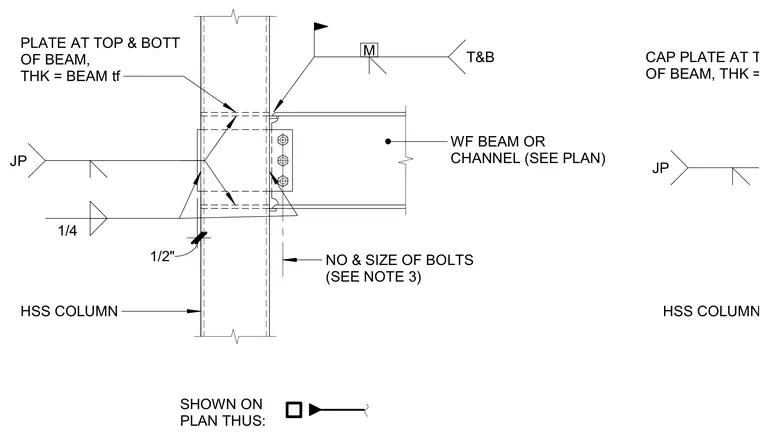

A wide-flange beam or channel frames into an HSS column using a bolted shear connection and plates at the top and bottom of the beam. The top and bottom plates match the thickness of the beam flange and are welded to the HSS column. A shear tab with specified bolts connects the beam web to the column. Weld symbols indicate partial-joint-penetration and fillet welds at the connection plates and column.
NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) PLATE AT TOP & BOTT OF BEAM, THK = BEAM tf T&B 1/4 M SHOWN ON PLAN THUS: 1/2" HSS COLUMN CAP PLATE AT TOP & BOTT OF BEAM, THK = BEAM tf JP JP
