Steel Column Base Plate at Concrete Footing and Slab

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Connections / Plates

Connections

Base Plate / Anchorage

About this detail

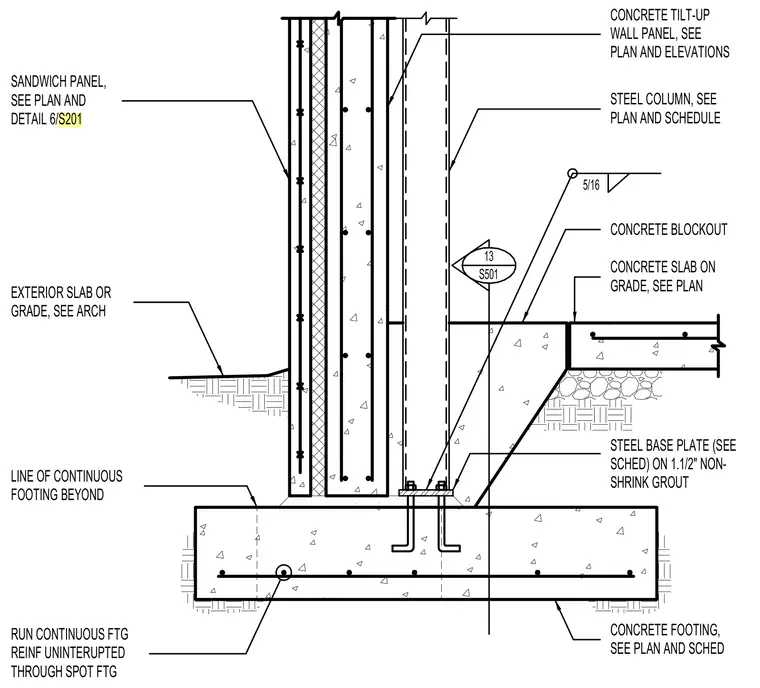

A structural steel column bears on a steel base plate set over one and a half inches of non-shrink grout on a concrete footing. The base plate is anchored with hooked anchor rods embedded into the continuous concrete footing, which features uninterrupted continuous footing reinforcement running through the spot footing. A concrete blockout surrounds the base plate area below the interior concrete slab on grade. Adjacent to the foundation, a sandwich wall panel connects to the structure, and exterior slab or grade conditions meet the assembly per architectural drawings.
